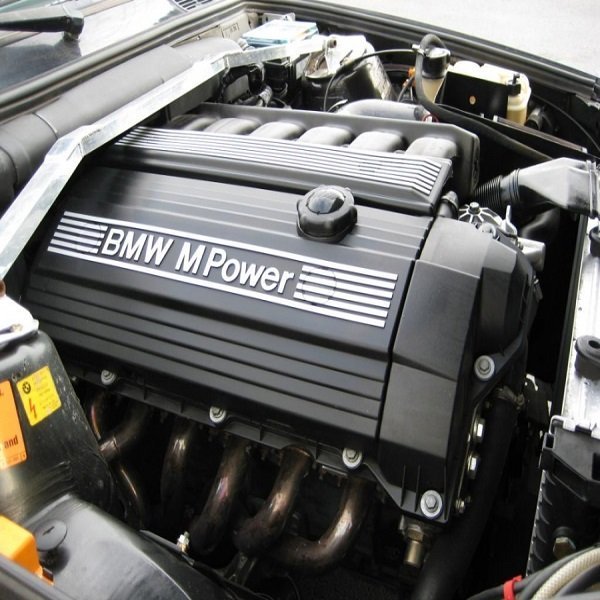

BMW S52 Engine for Sale | OEM E36 M3 3.2L US-Spec DOHC Inline-6
$8,990.00
Product Overview
- Displacement: 3,152 cc (3.2L / 192.4 cu in)
- Configuration: Inline-6, DOHC, 24 valves
- Horsepower: 240 hp at 6,000 rpm (US spec)
- Torque: 236 lb-ft at 3,800 rpm
- Condition: OEM used, compression tested and inspected
- Availability: Call to confirm current availability
- Shipping: Free freight to all 50 states, 5 to 10 business days
- All 6 cylinders pressure-tested with results shared before payment
- Single VANOS solenoid and system inspected before shipping
- Cooling system condition specifically assessed, known failure point
- S52 versus S50 distinction confirmed, US spec documented
- Zero core charge required, your existing engine stays with you
- Backed by a 15 day replacement warranty against internal defects
Did you like this product? Add to favorites now and follow the product.
(+800) 1234 5678 90 Start Live Chat
Description
Engine Background
The BMW S52 is the engine that powered the North American market E36 M3 from 1996 through 1999. It is a 3.2-liter naturally aspirated DOHC inline-six producing 240 hp, developed specifically for the US and Canadian markets by BMW’s M division as a performance version of the iron-block M52 engine. Despite being less powerful than the European S50 that powered M3s sold in other markets, the S52 has developed one of the most loyal followings of any BMW M engine, largely because of its cast iron block, strong reliability record, and exceptional tunability.
The S52’s relationship to the Euro S50 is a source of significant confusion in the E36 community. The two engines share the S52/S50 “M3 engine” designation but are based on completely different architectures. The S52 is derived from the iron-block M52 with M-specific camshafts, ported head, heavy-duty valve springs, and single VANOS. The Euro S50B32 is derived from the M50 and features individual throttle bodies, different VANOS architecture, a higher compression ratio, and 321 hp. Parts between the two are largely not interchangeable.
The S52’s cast iron block is widely cited by the BMW performance community as its most important characteristic. Cast iron is stronger, more tolerant of forced induction, and more forgiving of overheating events than the aluminum block S50. Turbocharged S52 builds in the 400 to 500 hp range are well documented. Stock internals are widely reported to hold up to 400 hp before requiring upgrades.
When Replacement Becomes Necessary
- Cold-start VANOS rattle lasting more than 3 to 4 seconds, VANOS solenoid screen clogged or internal seal wear. Normal VANOS engagement produces a brief rattle that clears quickly.
- Oil leaks at valve cover gasket and oil filter housing gasket, the two most common S52 oil leak points
- Overheating or rapid coolant loss, failed water pump (electric auxiliary pump or belt-driven main pump), cracked expansion tank, failed thermostat. Cooling system service is mandatory on any used S52.
- Rough idle with oil smoke, CCV system blockage or valve stem seal deterioration on high-mileage examples
- Timing chain rattle on cold start, timing chain guide wear. The S52 is an interference engine, chain failure causes valve damage.
- Loss of power at high rpm, VANOS actuator not engaging fully under load
Known Issues We Document Before Shipping
- Single VANOS seal and solenoid degradation: the S52 uses single VANOS on the intake camshaft only. The VANOS solenoid screen can clog with oil sludge from infrequent oil changes, and the internal seals degrade with age. Symptoms are rough idle, lost torque at low rpm, and cold-start rattle. We inspect VANOS solenoid connectors and note any fault code indicators before shipping.
- Cooling system, same critical vulnerability as the M54: the S52 shares the BMW straight-six cooling system weakness. Plastic water pump impeller, fragile plastic expansion tank, and brittle coolant hoses. Any overheating event risks head gasket failure on the aluminum head. We note cooling system condition externally and recommend a complete refresh at installation.
- Timing chain guides: the S52 timing chain is generally reliable but the plastic chain guides can wear on high-mileage engines. Cold-start chain rattle that persists more than a few seconds is the indicator. We listen for chain noise where accessible.
- S52 versus S50 confusion: only the S52 was sold in North American E36 M3 from 1996 to 1999. The European S50 has different VANOS architecture, individual throttle bodies, and is not directly interchangeable. We confirm the S52 (US spec) on every order.
- CCV (Crankcase Ventilation) system: the plastic CCV components can crack with age, allowing unmetered air into the intake (rough idle) and pressurizing the crankcase (gasket damage). CCV refresh at installation is cheap insurance against multiple post-install failures.
S52 Variants and Application Differences
Critical buyer information:
| Feature | BMW S52 (US and Canada) | BMW S50B32 (European) |
|---|---|---|
| Displacement | 3,152 cc (3.2L) | 3,201 cc (3.2L) |
| Block | Cast iron (shared with M52 US) | Aluminum (independent design) |
| Horsepower | 240 hp at 6,000 rpm | 321 hp at 7,400 rpm |
| Torque | 236 lb-ft at 3,800 rpm | 258 lb-ft at 3,250 rpm |
| VANOS | Single- intake cam only | Double VANOS (later S50B32) or ITBs |
| Throttle Bodies | Single throttle body | Individual throttle body per cylinder |
| Redline | 7,000 rpm | 7,600 rpm |
| Key Advantage | Cast iron block- stronger for FI builds | Higher output, more exotic technology |
| Years / Market | 1996 to 1999, US and Canada only | 1995 to 1999, all other markets |
| INCLUDED- Long Block | Block, crankshaft, pistons, connecting rods, camshafts, cylinder head with VANOS unit, valvetrain, oil pan, front timing cover. |
|---|---|
| NOT INCLUDED | Intake manifold, throttle body, fuel injectors and rail, alternator, power steering pump, A/C compressor, ECU and wiring harness, cooling system components (water pump, thermostat, expansion tank). |
| Critical Note | Replace water pump, thermostat, and expansion tank at installation. These are known failure points on any used BMW straight-six- this step is non-negotiable. |
| Core Note | No core charge. |
What Ships and What Does Not
| BMW E36 M3 (US and Canadian spec) | 1996 to 1999- coupe, sedan, and convertible |
|---|---|
| Swap Applications- E30 M3 | Extremely popular swap into E30 3-series chassis. Requires custom mounts, S52 wiring harness, and compatible transmission. |
| Swap Applications- E36 non-M | Popular performance upgrade into standard E36 325i, 328i using S52 components. |
Direct-Fit Vehicle Applications
| S52 engine | Most common buyer search code |
|---|---|
| BMW S52 | Full designation |
| E36 M3 engine | Application-specific buyer |
| S52B32 | Full engine code- enthusiast buyer |
| BMW M3 engine for sale | Application buyer |
| US spec M3 engine | Market specification buyer |
| S52 swap engine | Swap community buyer |
| BMW 3.2 M engine | Displacement and family designation |
| S52 vs S50 | Comparison research buyer |
| BMW M3 motor | Motor vs engine buyer |
Used OEM Versus Specialist Rebuild
For an E36 M3 (1996 to 1999 US spec) or a Z3 M Coupe / M Roadster (1998 to 2000) with engine failure, a documented used S52 with VANOS and cooling system condition disclosed is the cost-effective replacement path. For a high-mileage donor or a turbocharged build foundation, a specialist refresh with fresh VANOS seals, refreshed timing chain guides, new water pump and expansion tank, and CCV refresh is the better long-term investment. Specialist S52 rebuilds typically run $4,500 to $7,500 from established BMW M shops.
Inspection Workflow
- Compression test logged across all 6 cylinders with uniformity reported
- S52 (US spec) confirmed via casting marks and head identification (distinguished from Euro S50)
- Single VANOS solenoid condition assessed externally
- Cooling system components externally inspected: water pump, expansion tank, thermostat area
- Timing chain noise evaluated at cold start where accessible
- CCV system valve and lines externally inspected for cracking
- Oil filter housing gasket area inspected for seepage
- Valve cover gasket area inspected for seepage
Pre-Purchase Buyer Notes
- Plan a complete cooling system refresh at installation: water pump, expansion tank, thermostat, hoses, and coolant flush. The BMW straight-six cooling system has multiple known weak points. Refresh at install prevents post-install overheating that compromises the head gasket.
- Refresh the CCV system at installation: inexpensive components, prevents post-install rough idle and oil consumption.
- Inspect VANOS rebuild requirement: if cold-start rattle exceeds 3 to 4 seconds, plan a VANOS rebuild kit (Beisan Systems or equivalent) at installation. Rebuilding while the engine is out is dramatically cheaper than after installation.
- Use BMW-specification oil at 5,000-mile intervals maximum: 5W-30 LL-01 specification. The factory 15,000-mile interval has been widely documented as too long for the VANOS system and timing chain guides.
- Match S52 to S52 chassis: the S52 fits the E36 M3 and Z3 M chassis. Swap into other E36 chassis (325i, 328i) requires harness, ECU, and supporting work specific to non-M chassis.
Why Buy From Part Nests
- S52 (US spec) confirmed via casting and head identification before payment
- Single VANOS solenoid condition externally inspected
- Cooling system components assessed (water pump, expansion tank, thermostat)
- Timing chain noise evaluated where accessible
- CCV system condition externally inspected
- All 6 cylinders compression-tested with uniformity reported
- No core return required
- Free freight delivery to every state
- 15 day replacement warranty against internal defects
- Call (240) 306-7051 to speak with someone who knows S52 versus S50 differences, VANOS rebuild requirements, and BMW straight-six cooling system service planning
Additional information
| displacement | 152 cc (3.2L / 192.4 cu in), 3 |
|---|---|
| engine-code | S52B32 |
| configuration | 24 valves, DOHC, Inline-6 |
| bore-x-stroke | 86.4 mm x 89.6 mm |
| compression-ratio | 10.5:1 |
| horsepower | 000 rpm (US spec), 240 hp at 6 |
| torque | 236 lb-ft at 3, 800 rpm |
| redline | 000 rpm, 7 |
| vanos | Single- intake camshaft only |
| block-material | Cast iron (key advantage over Euro S50 aluminum block) |
| head-material | Aluminum alloy |
| production-years | 1996 to 1999 |
| market | US and Canada only- NOT the Euro S50 |
| manufacturer | BMW M GmbH |
| applications | BMW E36 M3 (US and Canada) | Swap applications (E30, E36 non-M) |
| condition | compression tested and inspected, Used OEM |
The S52 is the North American market E36 M3 engine (1996 to 1999), derived from the iron-block M52 with M-specific camshafts and single VANOS, producing 240 hp. The European S50B32 is derived from the M50, features individual throttle bodies, a different VANOS architecture, higher compression, and produces 321 hp. The two engines share the "M3 engine" designation but are based on completely different architectures. Parts are largely not interchangeable.
The cast iron block. Cast iron is stronger, more tolerant of forced induction, and more forgiving of overheating than the aluminum block S50. Turbocharged S52 builds in the 400 to 500 hp range are well documented. Stock internals are widely reported to hold up to 400 hp before requiring upgrades, which is unusual for a factory naturally aspirated engine of this era.
BMW's variable valve timing applied to the intake camshaft only (versus Double VANOS, which applies to both intake and exhaust). The system uses oil pressure and a solenoid to advance and retard intake cam timing. Symptoms of VANOS wear include rough idle, lost low-rpm torque, and cold-start rattle exceeding 3 to 4 seconds. VANOS rebuild kits are available from specialists.
The BMW straight-six cooling system has multiple known weak points: plastic water pump impeller (cracks with age), plastic expansion tank (cracks with age), and thermostat housing (seal failures). Any overheating event risks head gasket failure on the aluminum head. A complete cooling system refresh at engine installation is mandatory, not optional.
The North American market 1996 to 1999 E36 M3 (sedan, coupe, convertible), and the 1998 to 2000 Z3 M Coupe and Z3 M Roadster. The S52 was never offered in non-M E36 models from BMW; an S52 in a 325i or 328i chassis is a swap project, not a factory configuration.
Yes. Timing chain failure causes valve-to-piston contact and head damage. The S52 uses a timing chain (not a belt), so the service interval is longer than belt-driven engines, but chain guide wear is a known issue on high-mileage S52s. Cold-start chain rattle is the primary symptom.
5,000 miles maximum, regardless of BMW's factory 15,000-mile recommendation. The factory interval has been widely documented as too long for the VANOS system, timing chain guides, and CCV components. Use BMW LL-01 specification 5W-30 oil. The 5,000-mile interval is consensus practice among BMW M specialists.
No. There is no core return required.
15 Day Replacement Warranty
Every used BMW S52 engine purchased through Part Nests carries a 15 day replacement warranty starting on the delivery date.
What Is Covered
- Internal defects already present when the engine arrives
- Performance materially different from how the engine was described
- Incorrect part shipped due to an error on our end
What Is Not Covered
- Damage caused during installation
- Damage from skipped cooling system or CCV service at installation
- Damage from non-BMW-specification fluids
- External components unless specifically itemized
- Labor expenses of any kind
To start a warranty claim, reach us within 15 days of delivery at (240) 306-7051.
- S52 (US Spec) Confirmed: Distinguished from Euro S50 before payment
- Single VANOS Inspected: Signature S52 wear point externally assessed
- Cooling System Checked: Water pump, expansion tank, thermostat condition flagged
- Timing Chain Evaluated: Cold-start noise indicator assessed
- CCV System Assessed: Prevents post-install gasket failures
- 15 Day Replacement Cover: Internal defects protected from delivery onward
