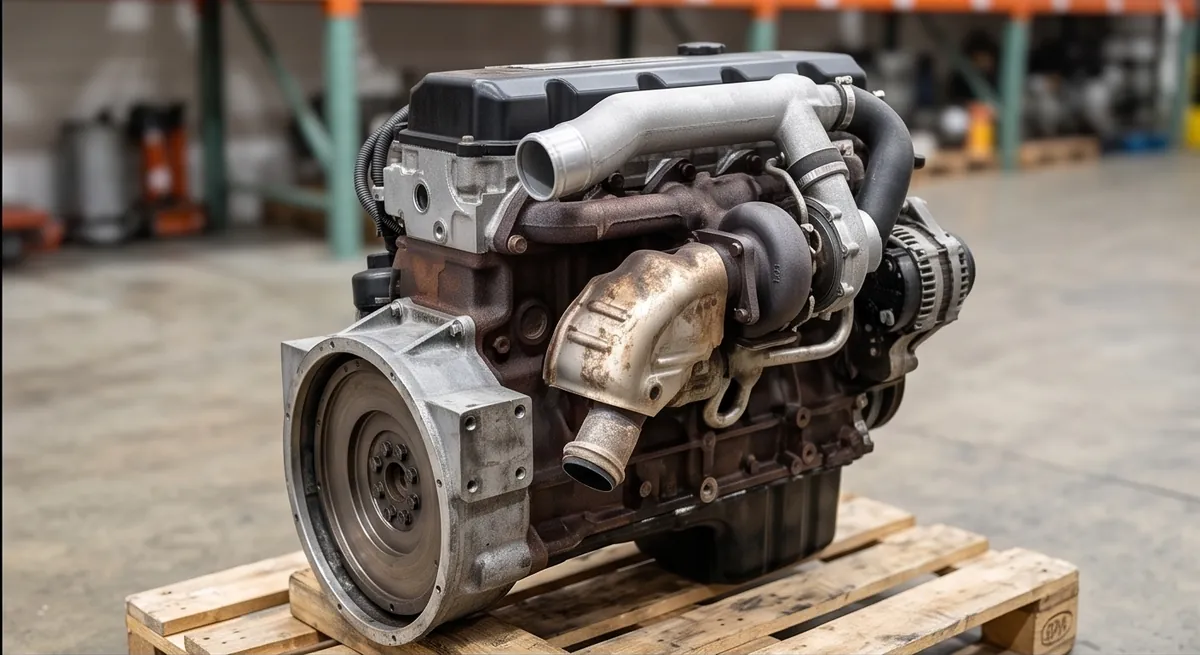

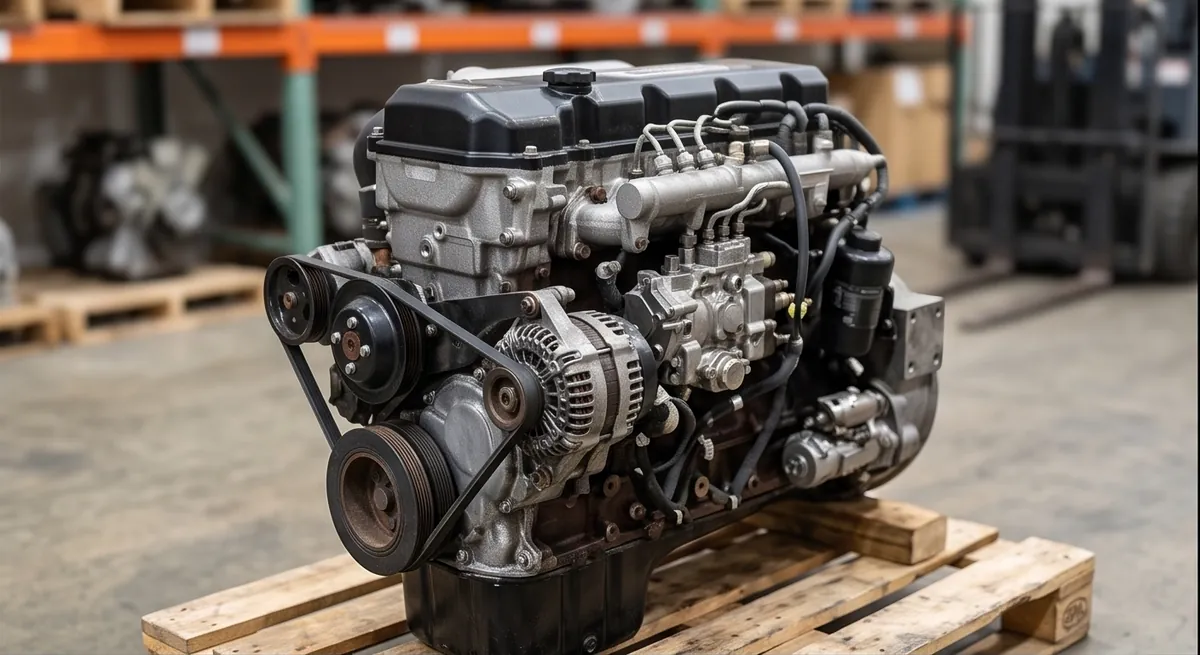

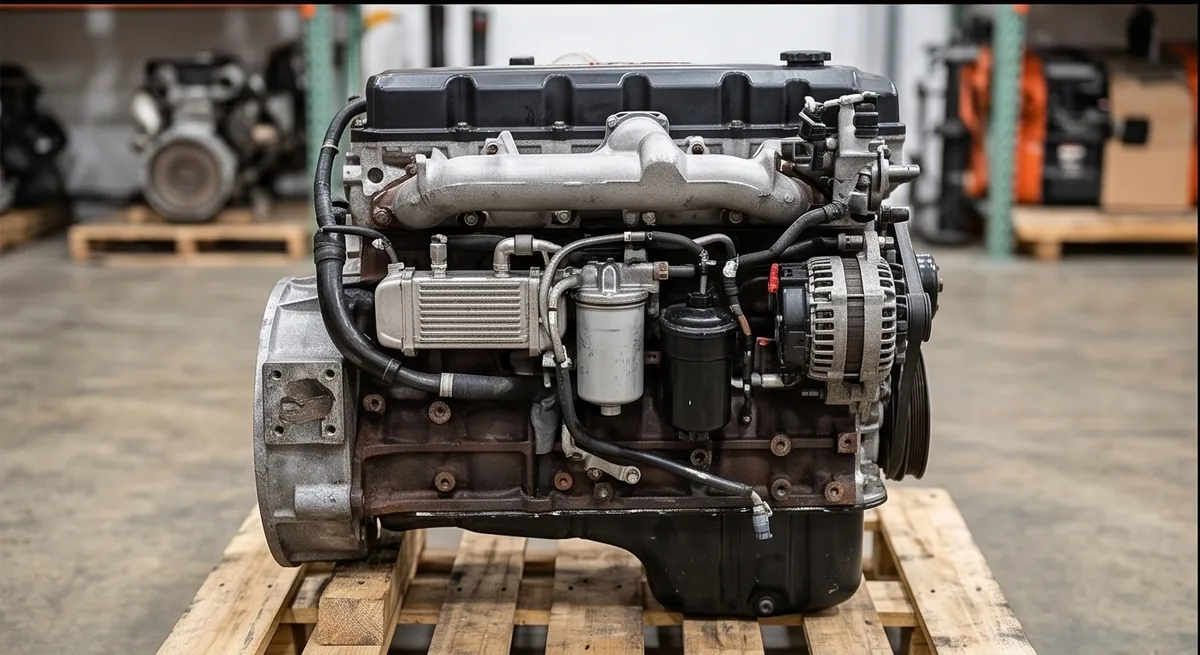

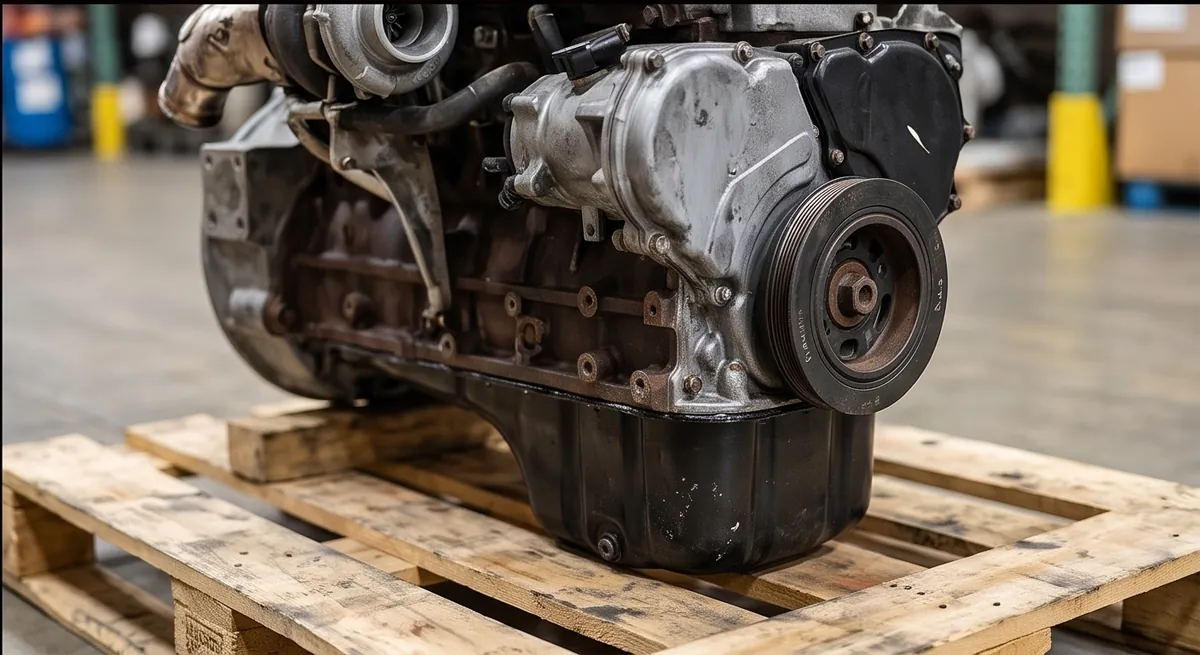

Isuzu 4HK1-TC Engine for Sale | OEM Used 5.2L Turbocharged and Intercooled Inline-4 Medium-Duty Diesel Producing 150 to 215 HP
$9,999.00
At a Glance
- Condition: OEM used, all 4 cylinders compression tested
- Availability: In stock, Isuzu 4HK1-TC engines available
- Shipping: Free shipping to all 50 states via freight pallet, 5 to 10 business days
- Engine code verified (4HK1-TC, NOT 4HK1 or 4HE1)
- Donor truck confirmed (NPR / NQR / NRR / F-Series / GMC W-Series / Chevy W-Series)
- Model year and emissions tier documented (Tier 2 / Tier 3 / Tier 4)
- Turbocharger condition assessed (spool, shaft play, bearing condition)
- Common-rail high-pressure fuel pump verified
- Injector condition baseline established
- Oil consumption baseline established
- EGR system condition documented
- DPF status noted where applicable
- Backed by a 15 day replacement warranty against internal defects
Description
About the Isuzu 4HK1-TC Engine
The Isuzu 4HK1-TC engine, a 5.2-liter turbocharged inline-four diesel, is highly regarded for its reliability and efficiency in medium-duty commercial truck applications. It is prominently featured in cab-over medium-duty trucks like the Isuzu NPR, NQR, and NRR, known for its robust performance across various commercial applications including delivery, logistics, refrigerated transport, dump bodies, utility service, and emergency response. This 4HK1-TC engine for sale at Part Nests emphasizes durability and fuel economy, with longevity (300,000+ mile service life is common) and reasonable maintenance costs that make it a preferred medium-duty choice.
Features of the Isuzu 4HK1-TC Engine
- Displacement: 5.2 liters (5,193 cc), with undersquare 115mm x 125mm bore and stroke design emphasizing low-end torque.
- Common-Rail Direct Fuel Injection: Modern Bosch or Denso common-rail high-pressure fuel injection system. Typical rail pressures of 1,600 to 2,200 bar.
- Turbocharged: Fixed-geometry or variable-geometry turbo (depending on model year and emissions tier), enhancing power and torque across the RPM range.
- Intercooled: Air-to-air intercooler improves volumetric efficiency, power output, and engine durability.
- EPA Emissions Compliant: Tier 2, Tier 3, or Tier 4 depending on model year, plus Euro 5 international standards.
- Power Output: 150 to 215 HP with 400 to 550 lb-ft of torque depending on application and emissions tier.
- Durability: Cast iron block and aluminum head, forged crankshaft, proven medium-duty diesel architecture.
- Maintenance: Regular oil and filter changes (5,000 to 10,000 mile intervals for commercial service), fuel filter replacement, periodic fuel system checks, turbocharger inspection, EGR maintenance.
Isuzu 4HK1-TC Vehicle Applications
The Isuzu 4HK1-TC engine is the primary medium-duty diesel for the following Class 4 through Class 6 cab-over commercial trucks:
Isuzu N-Series (Class 4-5 cab-over light medium-duty):
- Isuzu NPR (Class 4, 12,000 to 14,500 lb GVWR)
- Isuzu NPR-HD (Heavy-Duty, 14,500 lb GVWR)
- Isuzu NPR-XD (Extra Heavy-Duty, 17,950 lb GVWR)
- Isuzu NQR (Class 5, 17,950 lb GVWR)
- Isuzu NRR (Class 5, 19,500 lb GVWR)
Isuzu F-Series (Class 6 cab-over medium-duty):
- Isuzu FTR (Class 6, 25,950 lb GVWR)
- Isuzu FVR (Class 7, 33,000 lb GVWR)
International Isuzu Models:
- Isuzu Forward (Asia / Australia / international markets)
- Isuzu ELF (Asia / international markets, equivalent to N-Series)
- Isuzu Giga (heavier international markets)
- Isuzu N-Series (international variants)
GM Badge-Engineered Isuzu (2003 to 2009 US production):
- GMC W3500 (Class 4 cab-over, NPR equivalent)
- GMC W4500 (Class 4-5 cab-over, NPR-HD equivalent)
- GMC W5500 (Class 5 cab-over, NQR equivalent)
- Chevrolet W-Series (W3500, W4500, W5500 equivalent badging)
Critical Drivetrain Pairing: 4HK1-TC + AS68RC
The Isuzu 4HK1-TC is most commonly paired with the Aisin AS68RC 6-speed automatic transmission (our vaz134 listing) in NPR / NQR / NRR applications. This combination is the dominant Isuzu cab-over medium-duty drivetrain configuration in North America. If you are rebuilding an Isuzu NPR drivetrain, you typically need both:
- Isuzu 4HK1-TC engine (this listing)
- AS68RC 6-speed automatic transmission (our vaz134 listing)
Call (855) 634-4447 to discuss combined drivetrain pricing if you need both components together. The AS68RC TCM calibration is matched to the 4HK1-TC torque curve and shift schedule; using the matched pair ensures proper operation.
Why Choose Our Used Isuzu 4HK1-TC Engines
When you are in the market for a 4HK1-TC engine for sale, choosing a quality used engine can offer significant cost savings without compromising on performance. Our used Isuzu 4HK1-TC engines undergo rigorous inspection and testing.
Benefits:
- Cost-effective alternative to new engines ($14,000 to $20,000+ new dealer cost)
- Thoroughly inspected and tested before sale
- Compatible with multiple vehicle models (NPR-HD, NPR-XD, NQR, NRR, FTR, GMC W3500 / W4500 / W5500, Chevy W-Series)
- Donor truck history and model year documented
- Emissions tier identified for EPA compliance verification
Applications and Performance
The Isuzu 4HK1-TC is a versatile medium-duty diesel suitable for cab-over delivery trucks, dump bodies, refrigerated transport, utility service trucks, emergency response vehicles, and certain off-road industrial equipment.
Vehicle Compatibility
| Vehicle | Compatibility |
|---|---|
| Isuzu N-Series (Class 4-5 cab-over) | NPR, NPR-HD, NPR-XD, NQR, NRR |
| Isuzu F-Series (Class 6 cab-over) | FTR, FVR |
| GMC W-Series (badge-engineered Isuzu) | W3500, W4500, W5500 (2003 to 2009 production) |
| Chevrolet W-Series (badge-engineered Isuzu) | W3500, W4500, W5500 (2003 to 2009 production) |
| International Isuzu Models | Forward, ELF, Giga, N-Series |
| Industrial / Off-Road Applications | Various Isuzu industrial diesel engine packages |
Why Buy From Part Nests
- Engine code precision verified (4HK1-TC confirmed, not 4HK1 or 4HE1)
- Donor truck identified
- Model year and emissions tier documented
- Compression test results available before payment
- Turbocharger condition assessed
- Common-rail fuel system verified
- Drivetrain pairing assistance (AS68RC transmission per vaz134)
- Free freight pallet delivery to all 50 states
- 15 day replacement warranty on internal defects
- Isuzu medium-duty experienced support team
- Call (855) 634-4447 to confirm Isuzu 4HK1-TC engine code (5.2L turbocharged inline-4 diesel, NOT the 4HK1 naturally aspirated variant or the older 4HE1), donor truck (Isuzu NPR / NPR-HD / NPR-XD / NQR / NRR Class 4-5, FTR / FVR Class 6-7, GMC W3500 / W4500 / W5500 or Chevy W-Series 2003-2009 badge-engineered, or international Forward / ELF / Giga variants), model year and emissions tier (Tier 2 / Tier 3 / Tier 4 for EPA compliance verification), turbocharger condition, common-rail fuel system status, and the critical drivetrain pairing with the Aisin AS68RC 6-speed automatic transmission per vaz134 (the dominant NPR / NQR / NRR drivetrain configuration in North America) before ordering
15 Day Replacement Warranty
Every used Isuzu 4HK1-TC engine purchased through Part Nests carries a 15 day replacement warranty starting on the delivery date.
What Is Covered
- Internal defects already present when the engine arrives
- Compression failures on any of the 4 cylinders beyond what was disclosed
- Cylinder head crack failures within 15 days from installation
- Turbocharger failures within 15 days from installation
- Common-rail high-pressure fuel pump failures within 15 days from installation
- Injector failures within 15 days from installation
- Connecting rod, lifter, or bearing failures within 15 days from installation
- Incorrect engine code shipped (4HK1-TC vs 4HK1 or 4HE1 mismatch) or incorrect emissions tier due to an error on our end
What Is Not Covered
- Damage caused during installation
- Damage from contaminated diesel fuel (common-rail injectors are extremely sensitive to fuel contamination; water or particulate contamination can destroy the high-pressure fuel pump and injectors)
- Damage from extended oil change intervals or incorrect oil viscosity (Isuzu-approved CK-4 or CJ-4 diesel engine oil required, 5,000 to 10,000 mile change interval)
- Damage from neglected fuel filter maintenance
- Damage from neglected cooling system or coolant degradation
- Damage from neglected EGR system maintenance or EGR delete tunes (DPF / EGR delete tunes are illegal under EPA regulations and damage Tier 4 emissions hardware)
- Damage from operating with worn DPF or failed aftertreatment system (Tier 4 variants only)
- Damage from aggressive aftermarket tuning beyond Isuzu-approved fuel maps
- External components (ECM if separately documented, harness, intake manifold, exhaust manifold, EGR cooler, DPF / SCR aftertreatment system, starter, alternator, water pump, transmission, AC compressor, accessories) unless itemized
- Labor expenses of any kind
To start a warranty claim, reach us within 15 days of delivery at (855) 634-4447.
- All 4 Cylinders Tested: Compression results documented before payment
- Engine Code Verified: 4HK1-TC confirmed (NOT 4HK1 or 4HE1)
- Donor Truck Confirmed: NPR / NQR / NRR / F-Series / GMC W-Series / Chevy W-Series documented
- Turbocharger Condition Assessed: Spool, shaft play, bearing condition documented
- Common-Rail Fuel System Verified: High-pressure pump operation tested
- 15 Day Replacement Cover: Internal defects protected from delivery onward
Additional information
| aspiration | Turbocharged and intercooled |
|---|---|
| bore-x-stroke | 115 mm x 125 mm |
| compression-ratio | 17.5:1 |
| cooling-system | Liquid-cooled with radiator |
| fuel-system | Common-rail direct fuel injection system |
| fuel-type | Diesel (ULSD for 2007+ US applications) |
| valvetrain | Overhead camshaft (OHC), 4 valves per cylinder |
5.2L turbocharged and intercooled Inline-4 medium-duty diesel for cab-over commercial trucks. The 4HK1-TC designation: 4 indicates 4-cylinder, HK1 is the engine family code, TC indicates Turbocharged. Displacement is 5.2 liters (5,193 cc), undersquare design with 115mm x 125mm bore and stroke emphasizing low-end torque. Features common-rail direct fuel injection (Bosch or Denso, 1,600-2,200 bar rail pressure), turbocharger, air-to-air intercooler, cast iron block and aluminum head, forged crankshaft. Power output 150-215 HP with 400-550 lb-ft torque depending on application and emissions tier. The dominant medium-duty cab-over diesel in North America.
TC suffix indicates turbocharged; non-TC variant is naturally aspirated. The 4HK1-TC (this listing) is the turbocharged variant with intercooler. The 4HK1 (without -TC suffix) is the non-turbocharged variant used in lower-output applications. The 4HE1 is an older Isuzu engine family entirely (different displacement and architecture). When ordering, confirm the exact engine code matches your destination application; the turbocharged 4HK1-TC and non-turbocharged 4HK1 are NOT directly interchangeable due to different intake, exhaust, ECM calibration, and fuel system specifications. We verify the engine code on every 4HK1-TC we ship.
Isuzu N-Series, F-Series, GM badge-engineered W-Series, plus international variants. Isuzu N-Series Class 4-5 cab-over: NPR, NPR-HD, NPR-XD, NQR, NRR. Isuzu F-Series Class 6-7 cab-over: FTR, FVR. GM badge-engineered (2003-2009 US production): GMC W3500 / W4500 / W5500 and Chevrolet W-Series (NPR / NPR-HD / NQR equivalents). International variants: Isuzu Forward, ELF, Giga, international N-Series. The 4HK1-TC dominates the North American medium-duty cab-over commercial truck market.
Aisin AS68RC 6-speed heavy-duty automatic. The critical drivetrain pairing for the 4HK1-TC in North American applications is the Aisin AS68RC 6-speed heavy-duty automatic transmission (our vaz134 listing). This combination is the dominant Isuzu cab-over medium-duty drivetrain configuration. The AS68RC TCM calibration is matched to the 4HK1-TC torque curve, shift schedule, and lockup logic; using the matched engine-and-transmission pair ensures proper operation. For Isuzu NPR / NQR / NRR rebuilds, both components are typically needed together.
High-pressure fuel rail with electronically-controlled injectors at each cylinder. Common-rail diesel fuel injection uses a high-pressure fuel rail maintained at 1,600 to 2,200 bar (23,000 to 32,000 PSI) by a high-pressure pump. Electronically-controlled injectors at each cylinder open and close precisely under ECM command, allowing multiple injection events per cycle (pilot, main, post-injection), variable injection timing, and very precise fuel quantity metering. Benefits: improved fuel efficiency, reduced emissions, lower combustion noise, and precise torque control. The 4HK1-TC uses Bosch or Denso common-rail systems depending on model year. Common-rail systems are extremely sensitive to fuel contamination.
Tier 2, Tier 3, and Tier 4 depending on model year. EPA Tier 2 (pre-2007): basic turbocharged diesel with limited aftertreatment, often EGR-only emissions control. EPA Tier 3 (2007-2010): enhanced EGR, diesel oxidation catalyst (DOC), some applications with diesel particulate filter (DPF). EPA Tier 4 (2010+): full DPF, selective catalytic reduction (SCR with DEF / urea injection), enhanced EGR, plus on-board diagnostics. Tier 4 variants require DEF fluid for proper operation. We document emissions tier on every 4HK1-TC we ship for EPA compliance verification. Different emissions tiers are NOT directly interchangeable in regulated states.
300,000+ miles when properly maintained. The Isuzu 4HK1-TC is renowned for longevity in medium-duty commercial service. With proper maintenance (regular oil and filter changes at 5,000-10,000 mile intervals using Isuzu-approved CK-4 or CJ-4 diesel oil, fuel filter replacement at every oil change, clean diesel fuel, periodic turbocharger inspection, EGR maintenance), service life of 300,000+ miles is common in commercial fleet service. Some examples reach 500,000-600,000 miles before major rebuild. Key longevity factors: clean diesel fuel, proper oil change intervals, functional aftertreatment system (Tier 4 variants), and avoiding aftermarket delete tunes that compromise emissions hardware.
No. There is no core return required.
