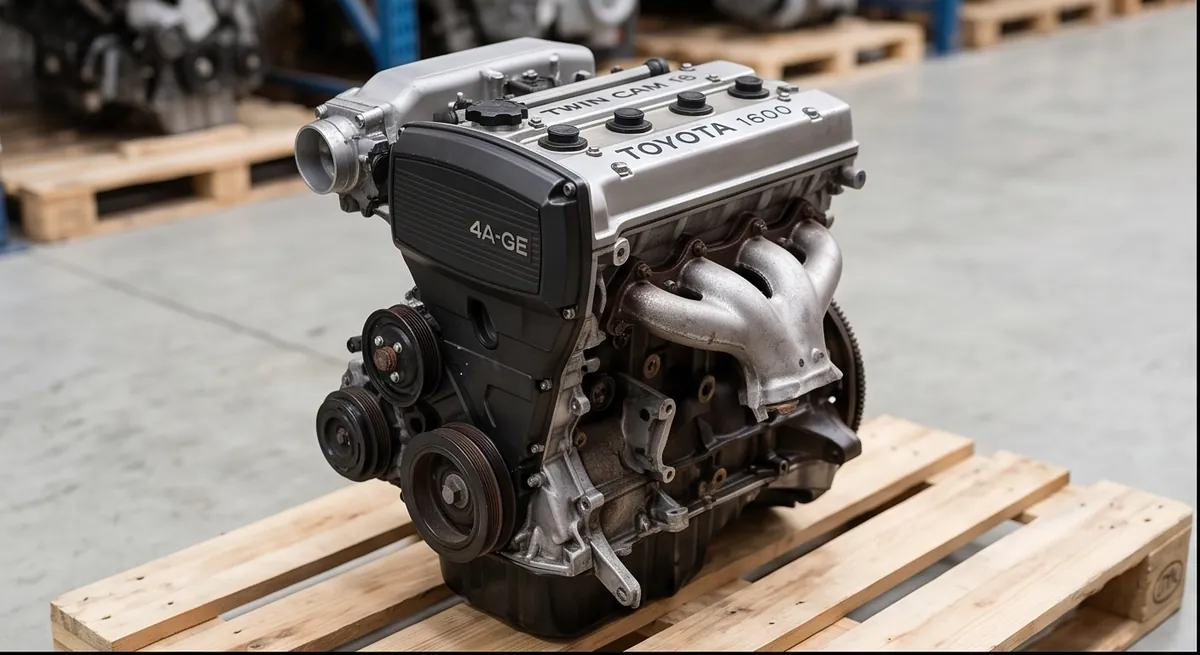

Toyota 4A-GE Engine for Sale | OEM Used Toyota 4A-GE 1.6 Liter DOHC Inline-4

Description

About the Toyota 4A-GE Engine

Looking for a replacement Toyota 4A-GE engine? Part Nests stocks OEM used Toyota 4A-GE 1.6L DOHC inline-4 engines across 16-valve and 20-valve variants. The 4A-GE is one of the most legendary Toyota performance engines, co-developed by Toyota and Yamaha (sharing cylinder head development heritage with the 2ZZ-GE per our listing). The 4A-GE powered iconic Japanese performance vehicles including the Toyota AE86 Corolla GT-S, MR2 AW11 (first-generation MR2), Corolla Levin, and Sprinter Trueno across multiple variants over its long 1983-2002 production run. The engine was produced in three primary variants: 16-valve (1983-1991), 20-valve Silver Top (1991-1995), and 20-valve Blacktop (1995-2002) with progressive performance refinements.

Engine Overview: Toyota 4A-GE Architecture

• Displacement: 1.6 liters (1,587 cc)
• Configuration: Inline-4 cylinder, DOHC (Double Overhead Cam)
• Bore x Stroke: 81 mm x 77 mm (oversquare design for high-revving)
• Power Output (varies by variant): 112-128 HP (16V variants), 160-165 HP (20V Silver Top and Blacktop)
• Peak Torque: 100-110 lb-ft (16V), 120-130 lb-ft (20V variants)
• Redline: Approximately 7,500-8,000 RPM (high-revving by NA standards)
• Cylinder Head: Aluminum DOHC; 16-valve (4 valves per cylinder, 16 total) or 20-valve (5 valves per cylinder, 20 total – rare 5-valve design)
• Block: Cast iron block
• Compression Ratio: 9.4:1 (16V) up to 11.0:1 (20V Blacktop)
• Fuel System: Port fuel injection (multi-point); ITB (individual throttle bodies) on 20V variants
• Variable valve timing: NO VVT on 16V or 20V Silver Top; VVT-i added on later 20V Blacktop variants
• Timing drive: Timing belt (service every 60,000-75,000 miles is critical)
• Production: Approximately 1983-2002 across all variants and global markets
• Co-developed: Joint Toyota / Yamaha project; Yamaha was responsible for cylinder head development

Three Primary 4A-GE Variants: CRITICAL Distinction

16-Valve 4A-GE (1983-1991):

• Valve configuration: 16-valve (4 valves per cylinder, 16 total)
• Power output: 112-128 HP across years and markets
• Identification: Cylinder head paint may vary; “T-VIS” intake variable system on some variants
• Primary applications: Toyota AE86 Corolla GT-S, MR2 AW11 (first-generation MR2), Corolla Levin, Sprinter Trueno (1983-1991 production), Celica
• Generation 1 (1983-1987): Early 16V variants without T-VIS
• Generation 2 (1987-1991): 16V with T-VIS variable intake

20-Valve Silver Top 4A-GE (1991-1995):

• Valve configuration: 20-valve (5 valves per cylinder, 20 total – rare 5-valve design)
• Power output: 160 HP at 7,400 RPM
• Identification: Silver-colored DOHC cam cover
• Fuel system: ITB (Individual Throttle Bodies – one per cylinder) for improved high-RPM breathing
• Primary applications: JDM Corolla Levin, Sprinter Trueno (1991-1995 production)
• NO VVT-i

20-Valve Blacktop 4A-GE (1995-2002):

• Valve configuration: 20-valve (5 valves per cylinder)
• Power output: 165 HP at 7,800 RPM
• Identification: Black-colored DOHC cam cover
• VVT-i intake variable valve timing on most Blacktop variants (later refinement)
• Compression ratio: 11.0:1 (highest of all 4A-GE variants)
• Primary applications: JDM Corolla Levin AE111, Sprinter Trueno AE111 (1995-2000 production)
• Most refined 4A-GE variant

20-Valve 5-Valve-Per-Cylinder Architecture Significance

The 20-valve 4A-GE (both Silver Top and Blacktop variants) is one of relatively few mass-production automotive engines with 5 valves per cylinder:

• 5 valves per cylinder: 3 intake valves and 2 exhaust valves per cylinder, totaling 20 valves across the 4 cylinders
• High-RPM breathing advantage: 5-valve design provides more intake port area improving high-RPM breathing
• Rare configuration: Only a few mass-production manufacturers used 5-valve-per-cylinder designs (Yamaha-developed Toyota 20V 4A-GE, some Audi / VW 5-valve engines, some Ferrari)
• ITB pairing: The 20V 4A-GE pairs the 5-valve head with ITB (Individual Throttle Bodies) – one throttle per cylinder for maximum high-RPM performance
• Yamaha development heritage: Yamaha was responsible for the cylinder head design across all 4A-GE variants; Yamaha’s motorcycle and racing engineering contributed to the high-revving 4A-GE character

4A-GE Iconic Applications

• Toyota AE86 Corolla GT-S (1983-1987): Most legendary 4A-GE application; the rear-wheel-drive AE86 is featured prominently in the “Initial D” anime and manga and has cult status in drifting and motorsport
• Toyota MR2 AW11 (first-generation MR2, 1984-1989): 4A-GE mid-engine sports car; rear-wheel-drive sports car
• Toyota Corolla Levin (multiple generations 1983-2000): JDM coupe/sedan with 4A-GE in higher trim levels
• Toyota Sprinter Trueno (multiple generations 1983-2000): JDM coupe with 4A-GE in higher trim levels
• Toyota Celica (some early variants): 4A-GE in some early Celica variants before transition to Celica-specific engines
• Toyota Carina / Corolla GT (various JDM): Various Toyota performance sedan variants with 4A-GE
• Lotus enthusiast use: 4A-GE engines (especially 20V variants) are popular Lotus Elan and Seven retrofit engines in the kit car / enthusiast community

Toyota / Yamaha Co-Development Heritage

The 4A-GE shares Toyota / Yamaha co-development heritage with the 2ZZ-GE (per our listing):

• Yamaha cylinder head development: Yamaha responsible for cylinder head design on both 4A-GE and 2ZZ-GE
• High-revving character: Yamaha-developed Toyota heads consistently produce high-revving characteristics; the 4A-GE redline at 7,500-8,000 RPM and the 2ZZ-GE redline at 8,200-8,400 RPM both reflect this Yamaha engineering signature
• Engineering generation difference: The 4A-GE represents 1980s-1990s Toyota / Yamaha NA performance engineering; the 2ZZ-GE represents late-1990s and early-2000s Toyota / Yamaha NA performance engineering with the addition of VVTL-i (cam phasing AND high-lift cam switching) technology
• Cultural significance: Both 4A-GE and 2ZZ-GE have strong cultural significance in the Toyota / Lotus / track day / drifting / motorsport enthusiast communities

Common 4A-GE Failure Modes

• Timing belt wear (CRITICAL): The 4A-GE is an interference engine; timing belt failure causes catastrophic valve damage; service every 60,000-75,000 miles is essential
• Cylinder head wear at very high mileage: The 20V variants with ITB are sensitive to ITB sync; ITB synchronization can drift
• Oil consumption: Some high-mileage 4A-GE examples (especially 20V variants with aggressive cam profiles) exhibit elevated oil consumption
• Coolant loss at high mileage: Head gasket inspection recommended at high mileage
• Distributor wear (16V variants): Mechanical distributor on 16V variants requires periodic service
• Crank angle sensor failure (20V variants): Common cause of check engine codes on 20V variants
• Carbon buildup at high mileage: Port-injection design but possible at very high mileage
• 20-30 plus year old age: All 4A-GE examples are now 20-40 plus years old; cooling system age, rubber hose aging, electrical aging are common concerns

Toyota Performance Engine Context

The Toyota 4A-GE (this listing) is one of Toyota’s most legendary high-revving NA performance engines. For Toyota performance engine context across our catalog, the Toyota 2ZZ-GE engine (our listing) is the successor high-revving Toyota / Yamaha NA performance engine with VVTL-i technology, used in Toyota Celica GT-S / Matrix XRS / Corolla XRS / Lotus Elise / Exige applications – the modern Toyota / Yamaha high-revving NA performance engine. Both 4A-GE and 2ZZ-GE share Yamaha cylinder head development heritage. For Toyota truck engine context: 3RZ-FE, 3VZ-E, 5VZ-FE and Tacoma 2.7, 22RE from provide truck engine context. The 4A-GE represents Toyota’s foundational performance engineering applied to the iconic AE86 and MR2 platforms.

Vehicle Compatibility

Why Buy From Part Nests

• Variant confirmed before sale (16-valve, 20-valve Silver Top, or 20-valve Blacktop – call (855) 634-4447 to specify)
• Year confirmed (4A-GE production approximately 1983-2002 across all variants and global markets)
• Application confirmed (Toyota AE86 Corolla GT-S, MR2 AW11 Mk1, Corolla Levin, Sprinter Trueno, Celica, various JDM)
• Horsepower rating documented (112-128 HP 16V, 160-165 HP 20V Silver Top, 165 HP 20V Blacktop)
• Compression and leak-down tested all 4 cylinders
• Cylinder head condition documented (Yamaha-developed aluminum DOHC head with 16 or 20 valves)
• VVT availability documented (NO VVT on 16V or 20V Silver Top; VVT-i on later 20V Blacktop)
• Timing belt condition assessed (4A-GE uses timing belt service every 60,000-75,000 miles critical)
• Toyota / Yamaha co-developed performance heritage (shared with 2ZZ-GE
• Free shipping to all 50 states via heavy freight
• 15 day replacement warranty on internal defects
• Toyota performance engine experience and 16V / 20V variant distinction knowledge from our support team
• Call (855) 634-4447 for fitment confirmation and to lock in your order.
