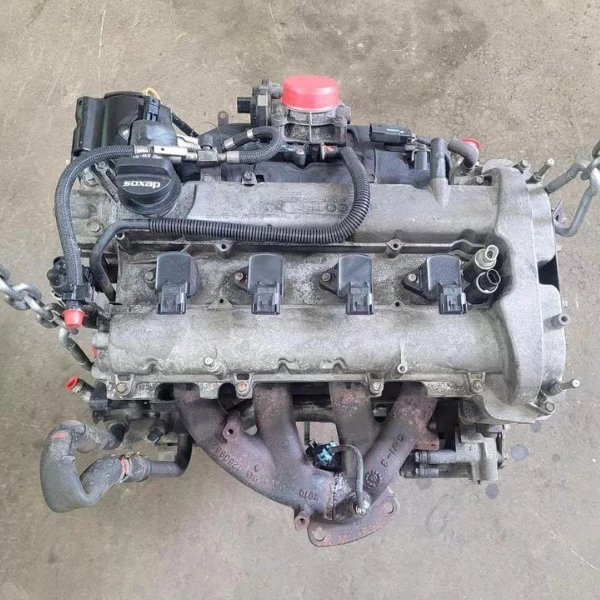

Chevy Equinox 2.4 Engine for Sale | OEM Ecotec LAF and LEA Inline-4 (2010 to 2017)

Description

Engine Background

The Chevrolet Equinox 2.4L engine (GM Ecotec LAF and LEA) is a 2.4-liter naturally aspirated DOHC inline-four that powered the second-generation Equinox and GMC Terrain from 2010 through 2017. Part of GM’s Ecotec engine family, it produces 182 hp and 172 lb-ft of torque from an all-aluminum construction with high-pressure direct injection, delivering competitive performance and fuel economy for its segment and era.

The 2.4L Ecotec is an honest engine that requires honest discussion. Two documented issues have affected this engine disproportionately across its production run. First, excessive oil consumption: the low-tension piston rings designed to reduce friction tend to develop carbon buildup in their grooves over time, locking them in place and allowing oil to bypass into the combustion chamber. Affected owners report consumption of one quart per 1,000 to 2,000 miles, and because direct injection means no fuel washing the intake valves, carbon deposits compound the issue. Second, timing chain stretch or failure: the chain can stretch prematurely or jump teeth, particularly on engines running low on oil. These two issues are related, low oil from consumption reduces tensioner hydraulic pressure, accelerating chain wear.

The good news: both conditions are assessable before shipping, and both are addressable at installation with proper maintenance going forward. We specifically inspect for these conditions on every unit before it ships. An Equinox 2.4 that has been properly maintained with regular oil changes and prompt oil level monitoring can deliver reliable service well past 150,000 miles.

When Replacement Becomes Necessary

• Rattle or ticking noise on cold start that persists more than a few seconds, timing chain slack from stretch or worn tensioner. This is the most serious sign and warrants immediate inspection.
• Oil level dropping between changes without visible leaks, piston ring carbon buildup causing oil consumption. Check oil level every 1,000 miles on any 2.4 Ecotec.
• Blue-grey exhaust smoke, oil burning from ring bypass. More noticeable on cold starts or after extended idle.
• Check engine light with cam timing fault codes, variable valve timing actuator wear or timing chain position error
• Carbon buildup symptoms, rough idle, hesitation, reduced throttle response (particularly on short-trip vehicles). Carbon deposits on intake valves from direct injection.
• PCV system failure, crankcase pressure buildup causing oil leaks from rear main seal or valve cover gaskets

Known Issues We Document Before Shipping

• Piston ring oil consumption, the 2.4 Ecotec’s most documented owner complaint: the low-tension piston rings develop carbon buildup in their grooves, locking them and allowing oil to bypass into the combustion chamber. GM acknowledged this and offered extended powertrain warranty coverage on affected vehicles. We inspect piston ring condition indicators (oil smoke, compression uniformity, and oil consumption signs) before shipping.
• Timing chain stretch and failure: the timing chain can stretch prematurely, particularly on engines that have run low on oil. Stretched chain causes cam timing retardation, rough running, and fault codes. A failed chain causes catastrophic valve damage. We specifically listen for timing chain rattle and assess chain tension indicators before shipping.
• LAF versus LEA variant: the LAF (used 2010 to 2012) and LEA (used 2013 to 2017) have minor calibration differences and slightly different supporting hardware. The variants are largely interchangeable but ECU calibration may differ. We confirm variant on every order.
• PCV system failure: the crankcase ventilation system can develop pressure issues that compound oil consumption and cause external leaks. PCV refresh at installation is good practice.
• Direct injection carbon buildup: like all GDI engines, the 2.4 Ecotec accumulates carbon on intake valves over time. Walnut blasting service at 60,000 to 100,000 miles improves long-term operation.

2.4 Ecotec Variants and Applications

Critical buyer information across the 2010 to 2017 production run:

What Ships and What Does Not

Direct-Fit Vehicle Applications

Used OEM Versus Specialist Rebuild

For a Chevy Equinox or GMC Terrain with a worn 2.4 Ecotec, a documented used unit with timing chain condition and oil consumption indicators specifically assessed is the cost-effective replacement path. Given the engine’s known issues, many buyers source carefully and plan a piston ring refresh as part of installation. Specialist 2.4 Ecotec rebuilds with new piston rings, fresh timing chain and tensioner, refreshed PCV system, and walnut blasting typically run $3,500 to $5,500 from established GM specialty shops. For an Equinox or Terrain owner with a high-value vehicle, the rebuild path is often the better long-term investment.

Inspection Workflow

• Compression test logged across all 4 cylinders with uniformity reported
• Variant confirmed: LAF (2010 to 2012) or LEA (2013 to 2017)
• Timing chain rattle assessed at cold start where determinable
• Oil consumption indicators inspected (valve cover internal condition, oil smoke evidence)
• PCV system external condition assessed
• Direct injection carbon buildup indicators noted
• Year and donor application documented (Equinox, Terrain, or other GM application)
• External oil leak survey at valve cover, oil pan, rear main seal area

Pre-Purchase Buyer Notes

• Plan a complete oil consumption assessment at installation: if budget allows, a piston ring refresh at installation is the most effective long-term fix for the 2.4 Ecotec’s known oil consumption issue. Inspect ring condition while the engine is out.
• Replace the timing chain, tensioner, and guides at installation if mileage is high: timing chain stretch is a known issue. Refreshing while the engine is out is dramatically cheaper than later.
• Refresh the PCV system at installation: inexpensive components, prevents post-install oil consumption and external leaks.
• Plan walnut blasting for high-mileage units: direct injection engines accumulate carbon on intake valves over time. At 60,000-plus miles, walnut blasting at installation improves long-term operation.
• Check oil level frequently after installation: regardless of donor history, monitor oil level every 1,000 miles for the first 10,000 miles to establish the engine’s actual consumption pattern. Topping up promptly prevents low-oil damage to the timing chain.

Why Buy From Part Nests

• Variant confirmed: LAF (2010 to 2012) or LEA (2013 to 2017) documented before payment
• Timing chain condition specifically assessed (the 2.4 Ecotec failure mode)
• Oil consumption indicators inspected (piston ring area assessed)
• PCV system external condition noted
• All 4 cylinders compression-tested with uniformity reported
• Year and donor application documented
• No core return required
• Free freight delivery to every state
• 15 day replacement warranty against internal defects
