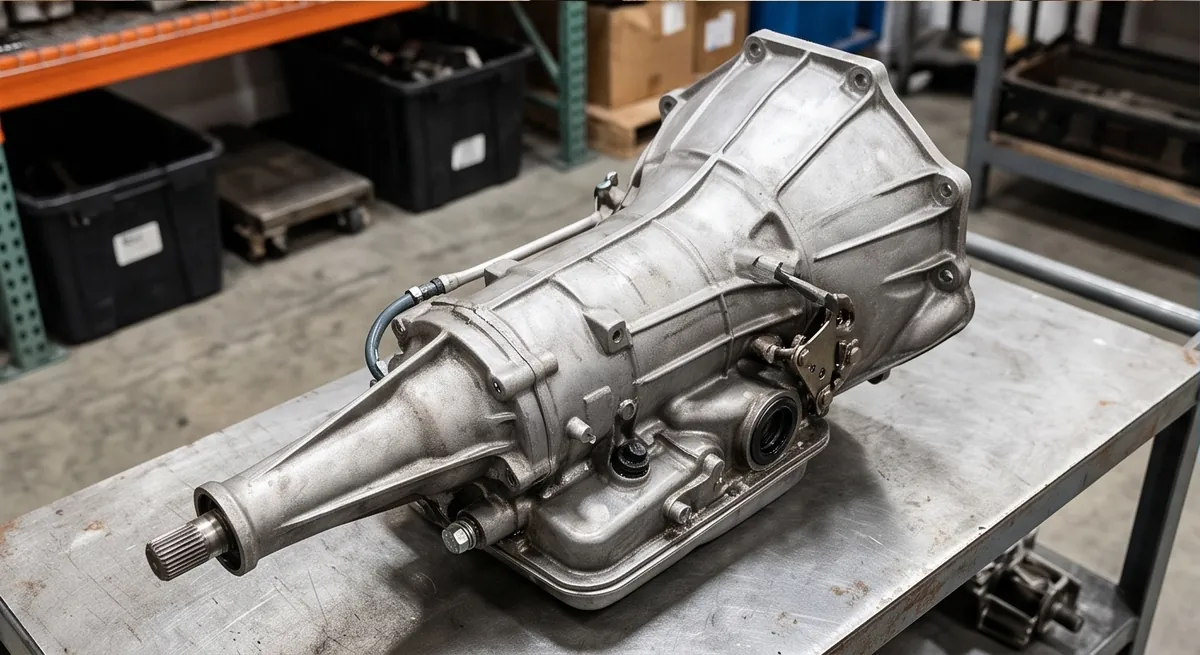

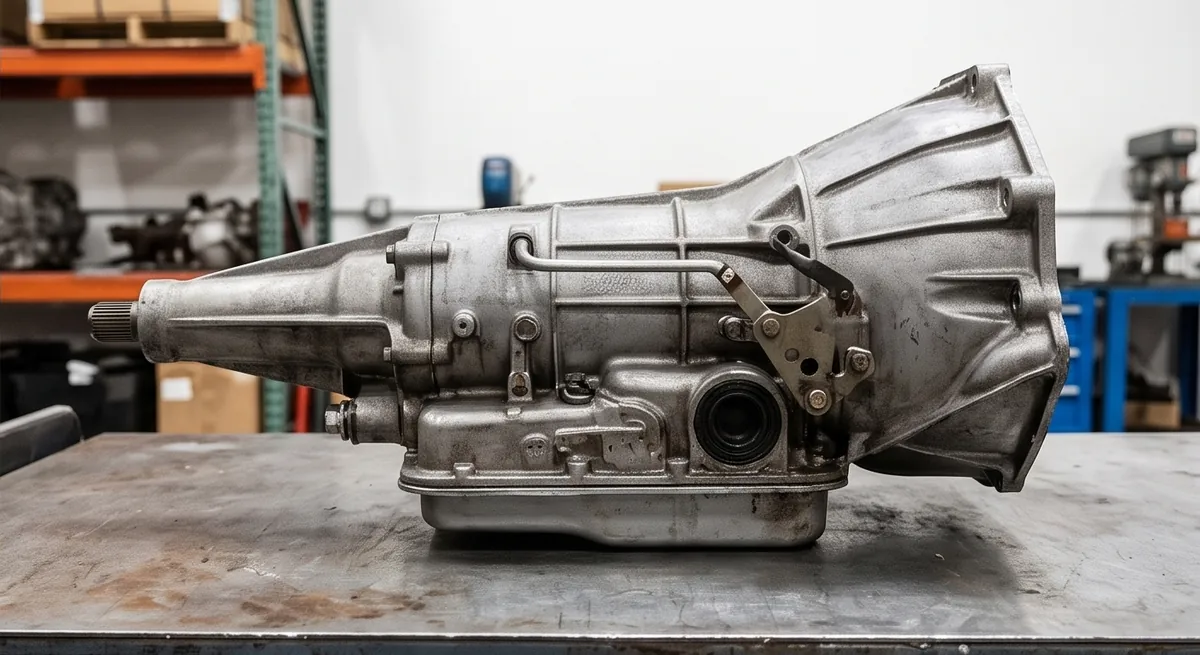

Ford E4OD Transmission for Sale | OEM Used Ford E4OD and 4R100 Heavy-Duty
$1,300.00
At a Glance
- Condition: OEM used, all 4 forward gears and reverse function-tested
- Availability: In stock, Ford E4OD / 4R100 transmission available
- Shipping: Free shipping to all 50 states via heavy freight, 5 to 10 business days
- Transmission variant verified (E4OD 1989-1998 mechanical valve body / 4R100 1998-2005 electronic valve body)
- Application confirmed (Ford F-150 / F-250 / F-350 / F-Super Duty / E-Series gasoline and Powerstroke diesel applications)
- Torque capacity documented (E4OD approximately 600 lb-ft / 4R100 approximately 750 lb-ft stock)
- All 4 forward gears and reverse function-tested
- Torque converter condition assessed (lock-up converter)
- Valve body condition documented (mechanical for E4OD, electronic for 4R100)
- Bellhousing pattern verified (must match specific engine family)
- 15 day replacement warranty on internal defects
Description
About the Ford E4OD and 4R100 Heavy-Duty Automatic Transmissions
Looking for a replacement heavy-duty automatic transmission for your Ford F-Series Super Duty or E-Series? Part Nests stocks OEM used Ford E4OD and 4R100 4-speed heavy-duty automatic transmissions. The E4OD (Electronic 4-speed Overdrive) was introduced in 1989 as Ford’s first electronic-controlled heavy-duty 4-speed automatic, succeeding the C6 3-speed in heavy-duty Ford applications. The 4R100 is the updated 1998-plus successor to the E4OD, with revised internals and a fully electronic valve body for improved shift quality and reliability. Both transmissions served behind Ford’s heavy-duty gasoline V8s (5.4L Modular, 5.8L Windsor, 6.8L Triton V10, 7.3L Godzilla) and the 7.3L Powerstroke diesel in F-250 / F-350 / F-Super Duty pickup, E-Series van, and various commercial applications.
Transmission Overview: E4OD / 4R100 Architecture
- Configuration: 4-speed automatic with overdrive (1st-2nd-3rd-OD pattern)
- Gear Ratios: 1st 2.71:1, 2nd 1.54:1, 3rd 1.00:1, OD 0.71:1, Reverse 2.18:1 (E4OD); 4R100 has revised ratios
- Torque Converter: Lock-up torque converter with electronic clutch lock-up control
- Valve Body: E4OD uses mechanical valve body with electronic shift solenoids; 4R100 uses fully electronic valve body
- Capacity: E4OD approximately 600 lb-ft, 4R100 approximately 750 lb-ft stock; both can be built to handle substantially more
- Cooling: External transmission cooler standard (heavy-duty cooler on Powerstroke applications)
- Heritage: Successor to the C6 3-speed automatic in Ford heavy-duty applications
- Successor: 5R110W TorqShift 5-speed automatic (introduced 2003 for some applications, replacing 4R100 in heavier-duty applications)
E4OD vs 4R100: The Critical Variant Distinction
- E4OD (1989-1998): Mechanical valve body with electronic shift solenoids. Production years vary by application; F-250 / F-350 used E4OD through 1998 model year.
- 4R100 (1998-2005): Fully electronic valve body, revised internals for improved shift quality and reliability. Introduced as the 1999 model year update for Super Duty platform launch.
The E4OD and 4R100 share the same general architecture but have substantially different valve body, electronics, and some internal components. Cross-application is possible but requires careful ECU, valve body, and harness verification. The 4R100 is generally regarded as more reliable than the early E4OD due to the electronic valve body refinements.
Bellhousing Pattern: Critical for Application Matching
The E4OD and 4R100 transmissions have multiple bellhousing patterns based on the engine family:
- Small Block Ford pattern: 5.0L / 5.8L Windsor / 460 (some applications)
- Modular V8 pattern: 4.6L / 5.4L Modular / Triton V8 (Super Duty applications 1999 plus)
- Triton V10 pattern: 6.8L Triton V10 (Super Duty applications 1999 plus)
- 7.3L Powerstroke diesel pattern: 7.3L Powerstroke IDI / Powerstroke (1994-2003 7.3L Powerstroke)
- 6.0L Powerstroke pattern: 6.0L Powerstroke (2003-2005 applications with 4R100)
The bellhousing must match the specific engine family. Cross-application across engine families requires bellhousing adapter or transmission swap. Call (855) 634-4447 with your specific year, application, and engine to verify bellhousing compatibility before ordering.
Ford / Chrysler / GM Heavy-Duty Transmission Family Context
The Ford E4OD / 4R100 (this listing) is the Ford heavy-duty 4-speed automatic transmission family from the 1989-2005 era. For broader heavy-duty transmission context across our catalog, the Chrysler 48RE 4-speed automatic (our listing, the Chrysler heavy-duty 4-speed automatic with overdrive built at Chrysler Kokomo Transmission Plant in the Torqueflite 727 family lineage with 460-475 lb-ft stock capacity used 2003-2007 behind 5.9 Cummins HPCR in Ram 2500 / 3500) is the Chrysler equivalent heavy-duty 4-speed automatic from approximately the same era. The Mercedes-Benz G56 6-speed manual (our listing, designed and manufactured by Daimler AG in Germany specifically for Dodge / Ram heavy-duty trucks paired with Cummins turbo diesel engines, deep 6.29:1 first gear and 0.79:1 sixth overdrive, used 2005-2018 across 5.9 Cummins and 6.7 Cummins generations) is the Chrysler manual transmission alternative to the 48RE automatic. The Cummins M11 heavy-duty diesel (our listing, the legendary heavy-duty diesel inline-6 that powered Class 8 trucks and fire apparatus from 1994 through early 2000s) and the related 5.9 / 6.7 Cummins inline-6 in Ram 2500 / 3500 HD pickups were the Cummins diesel applications paired with the Chrysler 48RE / G56 transmissions, paralleling the 7.3L Powerstroke diesel paired with the Ford E4OD / 4R100 in this listing. The Ford E4OD / 4R100 (this listing) and the Chrysler 48RE / G56 represent the heavy-duty transmission options across the Ford and Chrysler / Ram lineups in the 1990s-2000s era.
Common E4OD / 4R100 Failure Modes
- Torque converter clutch failure: Lock-up converter clutch can wear or fail; symptoms include shudder during lock-up engagement
- Valve body wear: E4OD mechanical valve body more prone to wear than 4R100 electronic valve body
- Shift solenoid failure: Common wear item; multiple solenoids in valve body assembly
- Forward clutch failure: The forward clutch pack is a common failure point under heavy load
- Overdrive band failure: Overdrive band wear causes slipping in 4th gear
- Output shaft seal failure: Causes fluid leak at transfer case junction
- Cooler line failure: Heavy-duty cooler lines can develop leaks at high mileage
Vehicle Compatibility
| Specification | E4OD (1989-1997) | 4R100 (1998-2004) |
|---|---|---|
| Production | 1989-1997 | 1998-2004 |
| Speeds | 4 (with overdrive) | 4 (with overdrive) |
| Control | Electronic | Electronic (PCM-controlled, refined) |
| Torque Capacity | ~600-700 lb-ft | ~1,000 lb-ft |
| Planetary Gears | Standard duty | Heavy-duty (upgraded) |
| Clutch Packs | Standard | Increased friction area |
| Valve Body | Standard | Revised hydraulic control |
| Common Applications | F-150 to F-Super Duty, E-Series, Bronco | F-150 Heritage / 7700, F-250/350/450/550 Super Duty, E-Series, Excursion, Navigator |
E4OD vs 4R100 Variant Specifications
| Truck | Years | Transmission | Common Engine Pairings |
|---|---|---|---|
| F-150 (light duty) | 1989-1996 | E4OD (later years) | 4.9 I6, 5.0 V8, 5.8 V8, 7.5 V8 |
| F-150 Heritage | 2004 | 4R100 (some) | 5.4 Triton, 4.6 V8 |
| F-150 7700 | 1999-2003 | 4R100 | 5.4 Triton, 6.8 V10 |
| F-250 (light duty) | 1989-1997 | E4OD | 4.9 I6, 5.0 V8, 5.8 V8, 7.5 V8, 7.3 IDI diesel |
| F-250 Super Duty | 1999-2004 | 4R100 | 5.4 Triton, 6.8 V10, 7.3 Power Stroke |
| F-350 (light duty) | 1989-1997 | E4OD | 5.8 V8, 7.5 V8, 7.3 IDI diesel |
| F-350 Super Duty | 1999-2004 | 4R100 | 5.4 Triton, 6.8 V10, 7.3 Power Stroke |
| F-450 Super Duty | 1999-2004 | 4R100 | 6.8 V10, 7.3 Power Stroke |
| F-550 Super Duty | 1999-2004 | 4R100 | 6.8 V10, 7.3 Power Stroke |
| F-Super Duty (pre-Super Duty era) | 1989-1997 | E4OD | 7.5 V8, 7.3 IDI diesel |
Bellhousing Pattern Reference
| Vehicle | Years | Transmission |
|---|---|---|
| Ford E-Series Vans (E-150 / E-250 / E-350) | 1990-2004 | E4OD then 4R100 |
| Ford Excursion | 2000-2004 | 4R100 |
| Ford Bronco (full-size) | 1989-1996 | E4OD |
| Lincoln Navigator (early) | Late 1990s | 4R100 (some applications) |
Common Failure Modes and Maintenance
| Vehicle | Compatibility |
|---|---|
| Ford F-150 (light duty) | 1989-1996 with E4OD, 1999-2003 some with 4R100 (heritage and 7700 packages) |
| Ford F-250 (light duty) | 1989-1997 with E4OD |
| Ford F-250 Super Duty | 1999-2004 with 4R100 |
| Ford F-350 (light duty) | 1989-1997 with E4OD |
| Ford F-350 Super Duty | 1999-2004 with 4R100 |
| Ford F-450 Super Duty | 1999-2004 with 4R100 |
| Ford F-550 Super Duty | 1999-2004 with 4R100 |
| Ford F-Super Duty (pre-1999) | 1989-1997 with E4OD |
| Ford E-Series Vans (E-150 / E-250 / E-350) | 1990-2004 with E4OD or 4R100 |
| Ford Excursion | 2000-2004 with 4R100 |
| Ford Bronco (full-size) | 1989-1996 with E4OD |
| Lincoln Navigator | Late 1990s, 4R100 in some applications |
Application Year and Engine Pairing
| Vehicle | Compatibility |
|---|---|
| Ford 4.9L Inline-6 (300 cid) | Early E4OD applications, 1989-1996 |
| Ford 5.0L V8 (302 cid) | E4OD applications in F-150 |
| Ford 5.4L Triton V8 | 1997+ in E4OD; 1999+ in 4R100 |
| Ford 5.8L V8 (351 Windsor) | E4OD applications |
| Ford 6.8L Triton V10 | 4R100 applications, F-250+ Super Duty |
| Ford 7.3L IDI Diesel (mechanical) | E4OD applications, 1989-1994 |
| Ford 7.3L Power Stroke Diesel (electronic) | 1994.5-1997 with E4OD; 1999-2003 with 4R100 |
| Ford 7.5L V8 (460 cid) | E4OD applications, 1989-1997 |
Why Buy From Part Nests
- Transmission variant verified (E4OD 1989-1998 mechanical valve body or 4R100 1998-2005 electronic valve body)
- Application confirmed (Ford F-150 / F-250 / F-350 / F-Super Duty / E-Series gasoline and Powerstroke diesel applications)
- Torque capacity documented (E4OD ~600 lb-ft, 4R100 ~750 lb-ft stock)
- All 4 forward gears and reverse function-tested
- Torque converter condition assessed
- Valve body condition documented
- Bellhousing pattern verified (must match specific engine family)
- Free shipping to all 50 states via heavy freight
- 15 day replacement warranty on internal defects
- Ford-experienced support team familiar with E4OD / 4R100 across applications
- Call (855) 634-4447 to verify application against your VIN before you order.
15 Day Replacement Warranty
Every used Ford E4OD or 4R100 transmission purchased through Part Nests carries a 15 day replacement warranty starting on the delivery date.
What Is Covered
- Internal defects already present when the transmission arrives
- Gear failures within 15 days from installation on any of the 4 forward gears or reverse
- Torque converter failures within 15 days from installation
- Valve body failures within 15 days from installation
- Shift solenoid failures within 15 days from installation
- Forward clutch failures within 15 days from installation
- Overdrive band failures within 15 days from installation
- Output shaft seal failures within 15 days from installation
- Case crack failures not disclosed at shipping
- Incorrect variant shipped (E4OD vs 4R100 mismatch where variant was documented) due to an error on our end
- Incorrect bellhousing pattern shipped due to an error on our end
What Is Not Covered
- Damage caused during installation
- Damage from incorrect transmission fluid (Mercon V required for E4OD / 4R100; using generic ATF causes shift issues and accelerated wear)
- Damage from extended fluid service intervals (30,000-50,000 mile intervals recommended for heavy-duty applications)
- Damage from operation beyond rated torque capacity (E4OD ~600 lb-ft, 4R100 ~750 lb-ft stock; aftermarket tunes producing additional torque exceed the stock capacity)
- Damage from neglected cooling (transmission cooler must be functional; overheating destroys clutches and seals)
- Damage from incorrect bellhousing application (cross-engine application without proper adapter)
- External components (torque converter if separately documented, valve body if not supplied, shift solenoid pack, ECU and wiring harness, transmission cooler, driveshaft, transfer case, shift linkage / shifter assembly, fluids drained for transit) unless itemized
- Labor expenses of any kind
To start a warranty claim, reach us within 15 days of delivery at (855) 634-4447.
- All 4 Gears and Reverse Function-Tested: Lock-up converter verified
- Transmission Variant Verified: E4OD mechanical valve body or 4R100 electronic valve body
- Application Confirmed: Ford F-Series Super Duty / E-Series gasoline and Powerstroke diesel
- Torque Capacity Documented: ~600 lb-ft E4OD / ~750 lb-ft 4R100 stock
- Torque Converter Condition Assessed: Lock-up converter clutch checked
- Bellhousing Pattern Verified: Engine family matched for correct fitment
- Valve Body Condition Documented: Mechanical or electronic depending on variant
- 15 Day Replacement Cover: Internal defects protected from delivery onward
Additional information
| Brand | Ford |
|---|---|
| transmission-type | 4-speed automatic with overdrive |
| transmission-family | Ford E4OD / 4R100 |
| manufacturer | Ford Motor Company |
| production-years-e4od | 1989-1997 |
| production-years-4r100 | 1998-2004 |
| control | Electronic (electronic shift solenoids, PCM-controlled) |
| gear-ratios | 1st 2.71:1, 2nd 1.54:1, 3rd 1.00:1, 4th 0.71:1 (overdrive), Reverse 2.18:1 |
| torque-capacity-e4od | ~600-700 lb-ft application-dependent |
| torque-capacity-4r100 | ~1, 000 lb-ft |
| construction | Cast iron case, aluminum bell housing |
| fluid-type | Mercon or Mercon V (depending on year) |
| cooling | External transmission cooler |
| predecessor | Ford C6 (1966-1996) |
| successor | Ford 5R110W TorqShift (2003+) and 6R140 TorqShift (2011+) |
| direct-fit | Ford F-150, F-250, F-350, F-450, F-550, F-Super Duty, E-Series, Excursion, Bronco, Lincoln Navigator |
| engines-mated | 4.9 I6, 5.0 V8, 5.4 Triton, 5.8 V8, 6.8 V10, 7.3 IDI, 7.3 Power Stroke, 7.5 V8 |
| price | $999.00 |
Ford heavy-duty 4-speed automatic transmission family from 1989-2005. The Ford E4OD (Electronic 4-speed Overdrive) was introduced in 1989 as Ford's first electronic-controlled heavy-duty 4-speed automatic, succeeding the C6 3-speed in heavy-duty Ford applications. The 4R100 is the updated 1998-plus successor to the E4OD, with revised internals and a fully electronic valve body for improved shift quality and reliability. Both transmissions served behind Ford's heavy-duty gasoline V8s (5.4L Modular, 5.8L Windsor, 6.8L Triton V10, 7.3L Godzilla) and the 7.3L Powerstroke diesel in F-250 / F-350 / F-Super Duty pickup, E-Series van, and various commercial applications. Specifications: 4-speed automatic with overdrive, gear ratios 1st 2.71 / 2nd 1.54 / 3rd 1.00 / OD 0.71 / R 2.18 for E4OD (4R100 has revised ratios), lock-up torque converter with electronic clutch lock-up control, E4OD mechanical valve body with electronic shift solenoids vs 4R100 fully electronic valve body, ~600 lb-ft E4OD / ~750 lb-ft 4R100 stock capacity.
Mechanical vs electronic valve body, with revised internals on 4R100. E4OD (1989-1998): mechanical valve body with electronic shift solenoids. Production years vary by application; F-250 / F-350 used E4OD through 1998 model year. 4R100 (1998-2005): fully electronic valve body, revised internals for improved shift quality and reliability. Introduced as the 1999 model year update for Super Duty platform launch. The E4OD and 4R100 share the same general architecture but have substantially different valve body, electronics, and some internal components. Cross-application is possible but requires careful ECU, valve body, and harness verification. The 4R100 is generally regarded as more reliable than the early E4OD due to the electronic valve body refinements.
Multiple patterns based on engine family. The E4OD and 4R100 transmissions have multiple bellhousing patterns. Small Block Ford pattern: 5.0L / 5.8L Windsor / 460 (some applications). Modular V8 pattern: 4.6L / 5.4L Modular / Triton V8 (Super Duty applications 1999 plus). Triton V10 pattern: 6.8L Triton V10 (Super Duty applications 1999 plus). 7.3L Powerstroke diesel pattern: 7.3L Powerstroke IDI / Powerstroke (1994-2003 7.3L Powerstroke). 6.0L Powerstroke pattern: 6.0L Powerstroke (2003-2005 applications with 4R100). The bellhousing must match the specific engine family. Cross-application across engine families requires bellhousing adapter or transmission swap. Call (855) 634-4447 with your specific year, application, and engine to verify bellhousing compatibility before ordering.
Ford E4OD / 4R100 and Chrysler 48RE / G56 are the heavy-duty options. The Ford E4OD / 4R100 (this listing) is the Ford heavy-duty 4-speed automatic transmission family from the 1989-2005 era. The Chrysler 48RE 4-speed automatic is the Chrysler heavy-duty 4-speed automatic with overdrive built at Chrysler Kokomo Transmission Plant in the Torqueflite 727 family lineage with 460-475 lb-ft stock capacity used 2003-2007 behind 5.9 Cummins HPCR in Ram 2500 / 3500 (the Chrysler equivalent heavy-duty 4-speed automatic from approximately the same era). The Mercedes-Benz G56 6-speed manual is the Chrysler manual transmission alternative for Dodge / Ram heavy-duty trucks paired with Cummins turbo diesel. The Cummins M11 plus 5.9 / 6.7 Cummins inline-6 in Ram 2500 / 3500 HD pickups were the Cummins diesel applications paired with Chrysler 48RE / G56, paralleling the 7.3L Powerstroke diesel paired with the Ford E4OD / 4R100 in this listing.
Seven well-documented failure modes. Torque converter clutch failure: lock-up converter clutch can wear or fail; symptoms include shudder during lock-up engagement. Valve body wear: E4OD mechanical valve body more prone to wear than 4R100 electronic valve body. Shift solenoid failure: common wear item; multiple solenoids in valve body assembly. Forward clutch failure: the forward clutch pack is a common failure point under heavy load. Overdrive band failure: overdrive band wear causes slipping in 4th gear. Output shaft seal failure: causes fluid leak at transfer case junction. Cooler line failure: heavy-duty cooler lines can develop leaks at high mileage. Most failures can be prevented or substantially delayed by proper fluid maintenance and avoiding operation beyond rated torque capacity.
Ford Mercon V automatic transmission fluid. Ford specifies Mercon V automatic transmission fluid for E4OD and 4R100 applications. Using generic ATF or incorrect fluid causes shift quality issues, accelerated wear of clutches and seals, and can damage the valve body. Recommended Mercon V brands include Motorcraft (OEM), Valvoline Mercon V, and other API-certified Mercon V compatible fluids. Fluid change interval: 30,000-50,000 miles for heavy-duty applications (towing, hauling, severe service); 60,000-100,000 miles for normal service. Heavy-duty applications benefit from external transmission cooler upgrades. Always check fluid level on level surface with engine warm and running, transmission in Park.
5R110W TorqShift 5-speed automatic. The 4R100 was succeeded by the 5R110W TorqShift 5-speed automatic transmission, introduced in 2003 for some applications and replacing the 4R100 in heavier-duty applications. The 5R110W added a fifth gear for improved fuel economy and shift quality, with increased torque capacity for the 6.0L Powerstroke applications. By approximately 2005, the 4R100 was replaced by the 5R110W in Super Duty applications. The 5R110W was itself succeeded by the 6R140 TorqShift 6-speed automatic for the 6.7L Powerstroke applications. The lineage represents Ford's progressive evolution of heavy-duty automatic transmissions: C6 3-speed → E4OD 4-speed → 4R100 4-speed → 5R110W 5-speed → 6R140 6-speed.
No. There is no core return required.
